N-LINE WEIGHT CONTROL SYSTEMS
Consisting of two individual weighing units continuously measuring the weight prior to and after injection, the Fomaco In-line Weight Control system ensures precise brine injection throughout the production day.

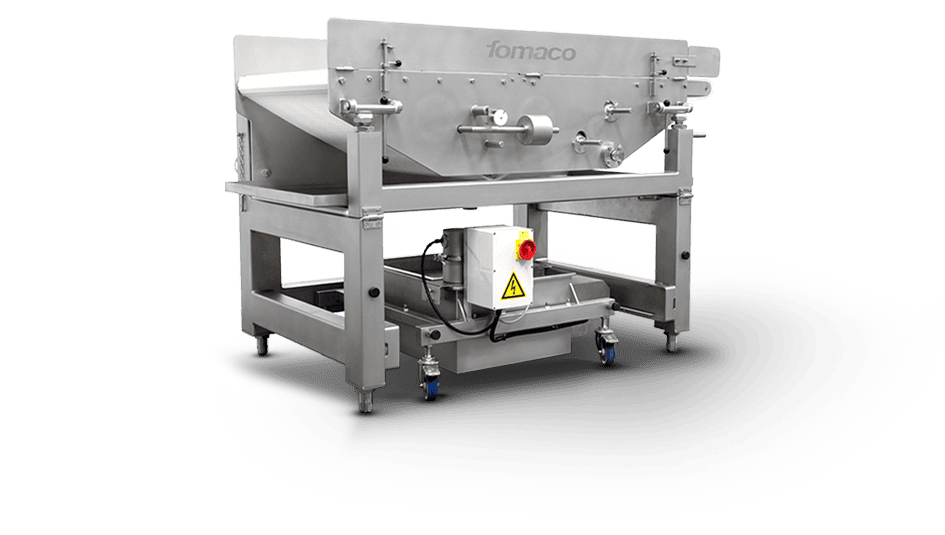

IWC
BUILT-IN STATE-OF-THE-ART TECHNOLOGY
Inside out the IWC system is exclusively made from quality materials and components. Therefore, it is no coincidence that Fomaco has chosen to use Eilersen digital load cells for its weighing units. Based on capacitive technology, this advanced piece of technology ensures the highest accuracy possible thus giving you the most uniform production results.
EASY FITTING - SIMPLE WORKFLOW
Because the IWC system is part of the complete Fomaco processing line, the weighing units of the IWC system are easily added to your existing M3 injector. The conveyor belts of the weighing units are designed to always run in synchronisation with the M3 conveyor belt, a process that is both unique and keeps your workflow simple and hassle-free.
Technical specifications IWC
Frame structure
A closed rigid frame structure made of RHS and SHS pipes, mounted on solid machine feet. The feet consist of a footplate with separate spindle, where the floor attached footplates also act as a positioning system.
Movability
By use of pallet truck
Conveyer belt
Intralox-serie 1100 Flush Grid
Material: Polyethylene
Drive
AMK iDT 4, 48 V low voltage servo motor Apex Dynamics planetary gear
Data transfer and processing Microsoft Excel
Data transfer via FTP, where data is downloaded on a local PC and processed in a Fomaco Excel template.
SCADA
Configured to and collected in a Modbus TCP/IP connection.
Power consumption
Approx. 0.25 kW/unit
Powered by the injector
Degree of encapsulation
IP 68
Compatibility
FGM 48 / FGM 64 / FGM 88 / FGM 112
| DIM. | IWC 48 | IWC 64 | IWC 88 | IWC 112 |
|---|---|---|---|---|
| A | 1700 mm | 1700 mm | 1700 mm | 1700 mm |
| B | 872 mm | 1004 mm | 1202 mm | 1400 mm |
| C | 1205 mm | 1205 mm | 1205 mm | 1205 mm |
| D | 1465 mm | 1465 mm | 1465 mm | 1465 mm |
| E | 420 mm | 550 mm | 750 mm | 950 mm |
| F | 1060 mm | 1060 mm | 1060 mm | 1060 mm |
| G | 1320 mm | 1320 mm | 1320 mm | 1320 mm |
| H | 160 mm | 160 mm | 160 mm | 160 mm |
| Weight | 530 kg | 550 kg | 580 kg | 615 kg |
