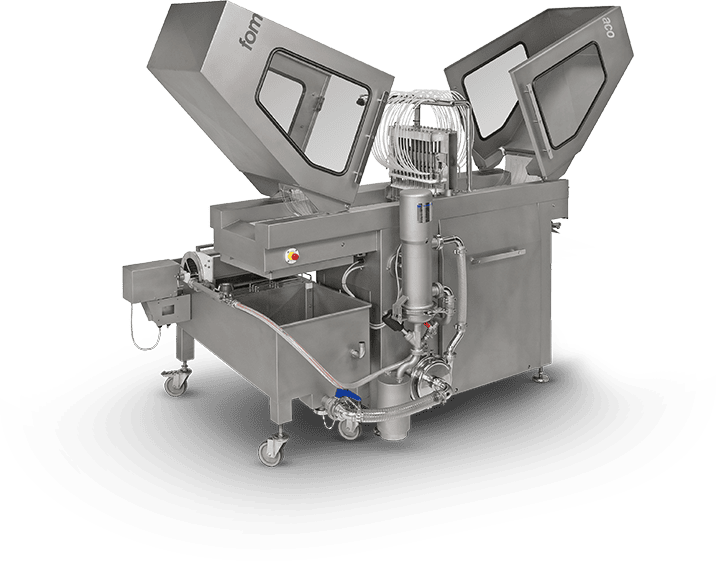

The Fomaco M2

The Fomaco M2
Performance & consistency

The Fomaco M2 offers accurate injection with minimal return brine, maximum needle control that minimizes injection errors, centrifugal pump to ensure constant brine distribution and an F-80 cartridge type filter to ensure no blocked needles.

M2 series is both hygienic in production and easy to clean and offers various sizes of injectors depending on width of the transport systems. Intuitive settings of pump pressure and production speed together with a constant read-out of brine temperature allows for precise and optimum food production.

The Fomaco M2

ACCURATE INJECTION MINIMAL RETURN BRINE

The M2 activates the needle head valves individually, injecting only when the needles are in the product, thus reducing the amount of return brine or marinade considerably.

MAXIMUM CONTROL

The sectionally divided stripper feet follow the contours of the product and prevent the product from moving when the needles are retracted. This also provides a uniform needle pattern and prevents the product from being injected twice – or from not being injected at all.

CONSISTENT BRINE DISTRIBUTION

The high performance centrifugal pump gives a constant brine pressure, ensuring a uniform distribution of brine - regardless of product size and number of needles in the product.

NO BLOCKED NEEDLES

The standard M2 injector comes with an F-80 cartridge type filter. However, you can upgrade to the FM 80 - a fully self-cleaning protein filter uniquely designed to remove all impurities in the brine, preventing the fine needle holes from blocking. This also ensures an even brine distribution, thus improving the product quality overall.

Relevant equipment for
Fomaco M2

Configure your machine to match your product with the following configuration options:

CLEANING MADE EASY

Due to a number of special features the cleaning of the M2 series is both thorough and quick:

  • Everything is manufactured in stainless steel and food approved plastic materials.
  • All electrical components are fully protected in a separate cabinet with an IP 68 protection so special care is not needed when cleaning the machine.
  • Needles can be dismantled and fitted without using tools.
  • The conveyor is easily removed without using tools and a separate washing rack is available. The conveyor frame itself has a quick-release system for easy cleaning.

USER FRIENDLY OPERATOR PANEL

Intuitive settings of pump pressure and production speed together with a constant read-out of brine temperature allows for precise and optimum food production.

CONFIGURATION OPTIONS FOR RED MEAT INJECTORS

Intuitive settings of pump pressure and production speed together with a constant read-out of brine temperature allows for precise and optimum food production.

Technical specifications M2

 FGM 26 M2FGM 44 M2FGM 54 M2
Number of needles 26 single, double
or quadro
44 single, double
or quadro
54 single, double
or quadro
Needle head 20-90 Strokes per min. 20-90 Strokes per min. 20-90 Strokes per min.
Transport system Conveyor belt – stainless steel or plastic (PEHD, Intralox) Conveyor belt – stainless steel or plastic (PEHD, Intralox) Conveyor belt – stainless steel or plastic (PEHD, Intralox)
Transport system (width) 350 mm 575 mm 700 mm
Product movement 30 mm and 50 mm per stroke 30 mm and 50 mm per stroke 30 mm and 50 mm per stroke
Stroke height (max) 230 mm 230 mm 230 mm
Product height (max) 200 mm 200 mm 200 mm
Weight 700 kg 780 kg 850 kg
